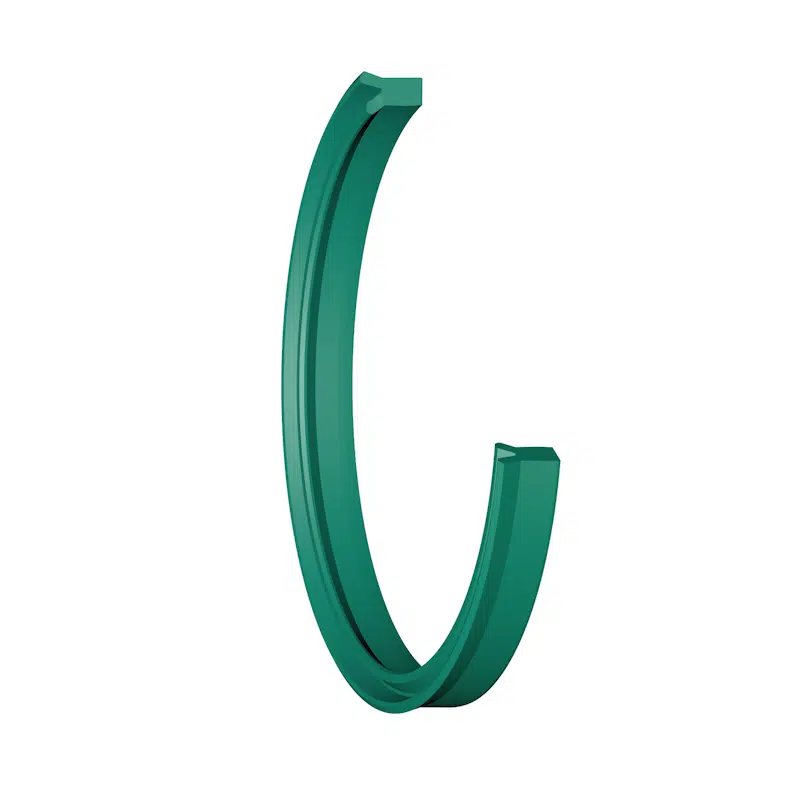

IDU seals are lower friction rod seal made of TPU. The design reduced contact surface to let it offers longer service life. Pressure range up to 320bar( 4641psi).They are available in metric sizes.
| IDU ROD SEALS | |
|---|---|
 | |
| Material | TPU |
| Pressure | Up to 320 bar(4640psi) |
| Speed | Up to 1 m/s |
| Temperature range | -30 to +110℃ |

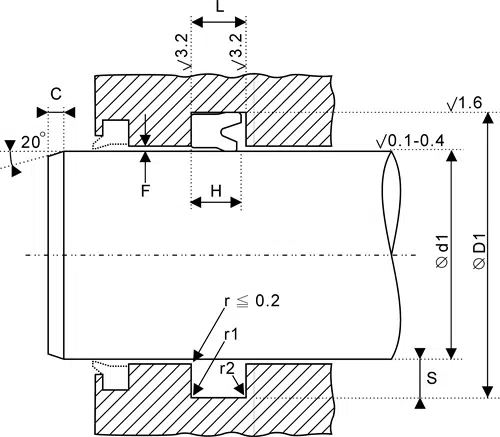

| Designation | d1 | D1 | H | L |
|---|---|---|---|---|
| IDU 10X16X8 | 10 | 16 | 8 | 9 |
| IDU 12X18X8 | 12 | 18 | 8 | 9 |
| IDU 14X20X8 | 14 | 20 | 8 | 9 |
| IDU 16X22X8 | 16 | 22 | 8 | 9 |
| IDU 16X24X10 | 16 | 24 | 10 | 12 |
| IDU 18X24X8 | 18 | 24 | 8 | 9 |
| IDU 18X26X10 | 18 | 26 | 10 | 12 |
| IDU 20X26X8 | 20 | 26 | 8 | 9 |
| IDU 20X28X10 | 20 | 28 | 10 | 12 |
| IDU 22X28X8 | 22 | 28 | 8 | 9 |
| IDU 22X30X10 | 22 | 30 | 10 | 12 |
| IDU 25X31X8 | 25 | 31 | 8 | 9 |
| IDU 25X33X10 | 25 | 33 | 10 | 12 |
| IDU 28X34X8 | 28 | 34 | 8 | 9 |
| IDU 28X36X10 | 28 | 36 | 10 | 12 |
| IDU 30X38X8 | 30 | 38 | 8 | 9 |
| IDU 30X38X10 | 30 | 38 | 10 | 12 |
| IDU 32X40X10 | 32 | 40 | 10 | 12 |
| IDU 34X42X10 | 34 | 42 | 10 | 12 |
| IDU 35X43X10 | 35 | 43 | 10 | 12 |
| IDU 36X44X10 | 36 | 44 | 10 | 12 |
| IDU 38X46X10 | 38 | 46 | 10 | 12 |
| IDU 40X48X10 | 40 | 48 | 10 | 12 |
| IDU 45X53X10 | 45 | 53 | 10 | 12 |
| IDU 50X58X10 | 50 | 58 | 10 | 12 |
| IDU 52X60X10 | 52 | 60 | 10 | 12 |
| IDU 55X63X10 | 55 | 63 | 10 | 12 |
| IDU 55X67X14 | 55 | 67 | 14 | 16 |
| IDU 56X64X10 | 56 | 64 | 10 | 12 |
| IDU 56X58X10 | 56 | 58 | 10 | 12 |
| IDU 60X72X14 | 60 | 72 | 14 | 16 |
| IDU 63X75X14 | 63 | 75 | 14 | 16 |
| IDU 65X77X14 | 65 | 77 | 14 | 16 |
| IDU 70X82X14 | 70 | 82 | 14 | 16 |
| IDU 72X84X14 | 72 | 84 | 14 | 16 |
| IDU 75X87X14 | 75 | 84 | 14 | 16 |
| IDU 80X92X14 | 80 | 92 | 14 | 16 |
| IDU 85X97X14 | 85 | 97 | 14 | 16 |
| IDU 86X98X14 | 86 | 98 | 14 | 16 |
| IDU 88X100X14 | 88 | 100 | 14 | 16 |
| IDU 90X102X14 | 90 | 102 | 14 | 16 |
| IDU 95X107X14 | 95 | 107 | 14 | 16 |
| IDU 100X112X14 | 100 | 112 | 14 | 16 |
| IDU 105X117X14 | 105 | 117 | 14 | 16 |
| IDU 105X121X18 | 105 | 121 | 18 | 20 |
| IDU 110X122X14 | 110 | 122 | 14 | 16 |
| IDU 110X126X18 | 110 | 126 | 18 | 20 |
| IDU 115X127X14 | 115 | 127 | 14 | 16 |
| IDU 115X131X18 | 115 | 131 | 18 | 20 |
| IDU 120X132X14 | 120 | 132 | 14 | 16 |
| IDU 120X136X18 | 120 | 136 | 18 | 20 |
| IDU 125X137X14 | 125 | 137 | 14 | 16 |
| IDU 125X141X18 | 125 | 141 | 18 | 20 |
| IDU 130X142X14 | 130 | 142 | 14 | 16 |
| IDU 130X146X18 | 130 | 146 | 18 | 20 |
| IDU 135X147X14 | 135 | 147 | 14 | 16 |
| IDU 135X151X18 | 135 | 151 | 18 | 20 |
| IDU 140X152X14 | 140 | 152 | 14 | 16 |
| IDU 140X156X18 | 140 | 156 | 18 | 20 |
| IDU 145X157X14 | 145 | 157 | 14 | 16 |
| IDU 145X161X18 | 145 | 161 | 18 | 20 |
| IDU 150X162X14 | 150 | 162 | 14 | 16 |
| IDU 150X166X18 | 150 | 166 | 18 | 20 |
| IDU 155X167X14 | 155 | 167 | 14 | 16 |
| IDU 155X171X18 | 155 | 171 | 18 | 20 |
| IDU 160X172X14 | 160 | 172 | 14 | 16 |
| IDU 160X176X18 | 160 | 176 | 18 | 20 |
| IDU 165X181X18 | 165 | 181 | 18 | 20 |
| IDU 170X186X18 | 170 | 186 | 18 | 20 |
| IDU 175X191X18 | 175 | 191 | 18 | 20 |
| IDU 180X196X18 | 180 | 196 | 18 | 20 |
| IDU 185X201X18 | 185 | 201 | 18 | 20 |
| IDU 190X206X18 | 190 | 206 | 18 | 20 |
| IDU 195X211X18 | 195 | 211 | 18 | 20 |
| IDU 200X216X18 | 200 | 216 | 18 | 20 |
| IDU 205X221X18 | 205 | 221 | 18 | 20 |
| IDU 210X226X18 | 210 | 226 | 18 | 20 |
| IDU 215X231X18 | 215 | 231 | 18 | 20 |
| IDU 220X236X18 | 220 | 236 | 18 | 20 |
| IDU 225X241X18 | 225 | 241 | 18 | 20 |
| IDU 230X246X18 | 230 | 246 | 18 | 20 |
| IDU 235X251X18 | 235 | 251 | 18 | 20 |
| IDU 240X256X18 | 240 | 256 | 18 | 20 |
| IDU 250X266X18 | 250 | 266 | 18 | 20 |
| IDU 260X276X18 | 260 | 276 | 18 | 20 |
| IDU 265X281X18 | 265 | 281 | 18 | 20 |
| IDU 270X286X18 | 270 | 286 | 18 | 20 |
| IDU 280X296X18 | 280 | 296 | 18 | 20 |
| IDU 290X306X18 | 290 | 306 | 18 | 20 |
| IDU 295X311X18 | 295 | 311 | 18 | 20 |
| IDU 300X316X18 | 300 | 316 | 18 | 20 |
| IDU 310X334X24 | 310 | 334 | 24 | 26.5 |
| IDU 320X344X24 | 320 | 344 | 24 | 26.5 |
| IDU 330X354X24 | 330 | 354 | 24 | 26.5 |
| IDU 340X364X24 | 340 | 354 | 24 | 26.5 |
| IDU 350X374X24 | 350 | 374 | 24 | 26.5 |
| IDU 360X384X24 | 360 | 384 | 24 | 26.5 |
| IDU 370X394X24 | 370 | 394 | 24 | 26.5 |
| IDU 380X404X24 | 380 | 404 | 24 | 26.5 |
| IDU 400X424X24 | 400 | 424 | 24 | 26.5 |
| IDU 420X444X24 | 420 | 444 | 24 | 26.5 |
| IDU 450X474X24 | 450 | 474 | 24 | 26.5 |
