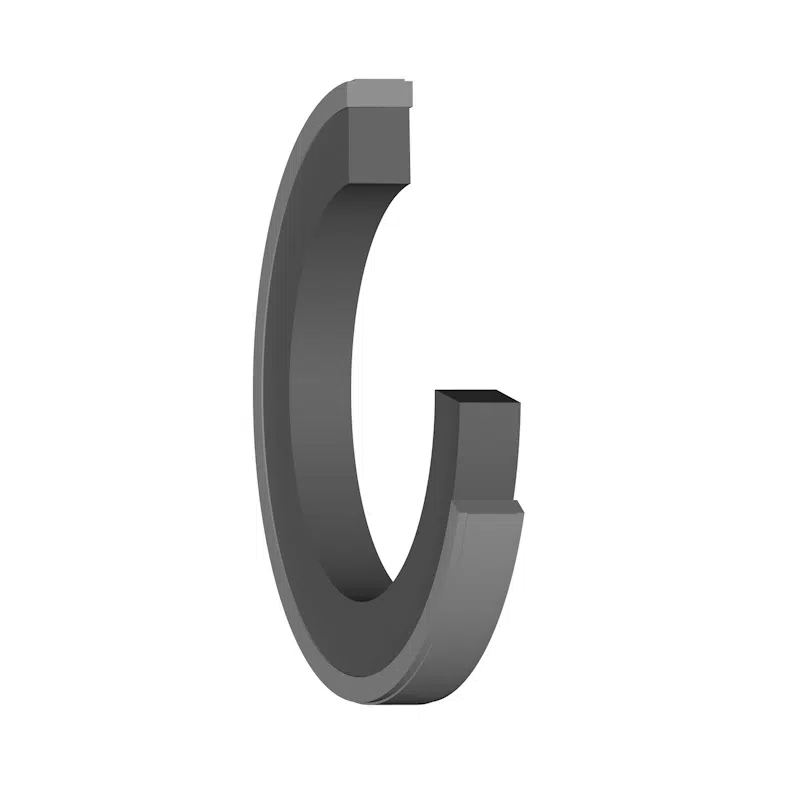

OK seals have a step cut slide ring and a rectangular energizer.Pressure range up to 800bar(11600psi).They are available in metric sizes.
| OK PISTON SEALS | |
|---|---|
 | |
| Material | Slide ring: PA66 |
| Energizer: NBR | |
| Pressure | Up to 800 bar(11600psi) |
| Speed | Up to 1 m/s |
| Temperature range | -30 to +110℃ |
| Designation | D1 | d1 | L |
|---|---|---|---|
| OK 25X16X4.2 | 25 | 16 | 4.2 |
| OK 32X21X4.2 | 32 | 21 | 4.2 |
| OK 40X26.3X5.8 | 40 | 26.3 | 5.8 |
| OK 40X29X4.2 | 40 | 29 | 4.2 |
| OK 50X34.5X6.3 | 50 | 34.5 | 6.3 |
| OK 50X39X4.2 | 50 | 39 | 4.2 |
| OK 60X41.7X7 | 60 | 41.7 | 7 |
| OK 60X49X4.2 | 60 | 49 | 4.2 |
| OK 63X44.7X7 | 63 | 44.7 | 7 |
| OK 63X47.5X6.3 | 63 | 47.5 | 6.3 |
| OK 63X52X4.2 | 63 | 52 | 4.2 |
| OK 70X51.7X7 | 70 | 51.7 | 7 |
| OK 70X59X4.2 | 70 | 59 | 4.2 |
| OK 75X54X8 | 75 | 54 | 8 |
| OK 80X59X8 | 80 | 59 | 8 |
| OK 80X64.5X6.3 | 80 | 64.5 | 6.3 |
| OK 85X64X8 | 85 | 64 | 8 |
| OK 90X69X8 | 90 | 69 | 8 |
| OK 90X74.5X6.3 | 90 | 74.5 | 6.3 |
| OK 95X74X8 | 95 | 74 | 8 |
| OK 100X79X8 | 100 | 79 | 8 |
| OK 100X84.5X6.3 | 100 | 84.5 | 6.3 |
| OK 105X84X8 | 105 | 84 | 8 |
| OK 110X89X8 | 110 | 89 | 8 |
| OK 110X94.5X6.3 | 110 | 94.5 | 6.3 |
| OK 115X94X8 | 115 | 94 | 8 |
| OK 120X99X8 | 120 | 99 | 8.1 |
| OK 125X104X8 | 125 | 104 | 8.1 |
| OK 125X109.5X6.3 | 125 | 109.5 | 6.3 |
| OK 130X109X8 | 130 | 109 | 8.1 |
| OK 135X119.5X6.3 | 135 | 119.5 | 6.3 |
| OK 135X114X8 | 135 | 114 | 8 |
| OK 140X119X8 | 140 | 119 | 8.1 |
| OK 145X124X8 | 145 | 124 | 8.1 |
| OK 150X129X8 | 150 | 129 | 8 |
| OK 160X139X8 | 160 | 139 | 8 |
| OK 165X144X8 | 165 | 144 | 8 |
| OK 170X149X8 | 170 | 149 | 8 |
| OK 175X154X8 | 175 | 154 | 8 |
| OK 180X159X8 | 180 | 159 | 8 |
| OK 190X169X8 | 190 | 169 | 8 |
| OK 200X179X8 | 200 | 179 | 8 |
| OK 210X189X8 | 210 | 189 | 8 |
| OK 220X199X8 | 220 | 199 | 8 |
| OK 230X209X8 | 230 | 209 | 8 |
| OK 240X225X8 | 240 | 225 | 8 |
| OK 250X229X8 | 250 | 229 | 8 |
| OK 260X239X8 | 260 | 239 | 8 |
| OK 270X249X8 | 270 | 249 | 8 |
| OK 280X255.5X8 | 280 | 255.5 | 8 |
| OK 290X271X9.5 | 290 | 271 | 9.5 |
| OK 300X272X9.5 | 300 | 272 | 9.5 |
| OK 320X292X9.5 | 320 | 292 | 9.5 |
| OK 330X302X9.5 | 330 | 302 | 9.5 |
| OK 350X322X9.5 | 350 | 322 | 9.5 |
| OK 370X342X9.5 | 370 | 342 | 9.5 |
| OK 420X392X9.5 | 420 | 392 | 9.5 |
| OK 450X422X9.5 | 450 | 422 | 9.5 |
| OK 480X452X9.5 | 480 | 452 | 9.5 |
